Rescue Platforms

Rescue Platforms:

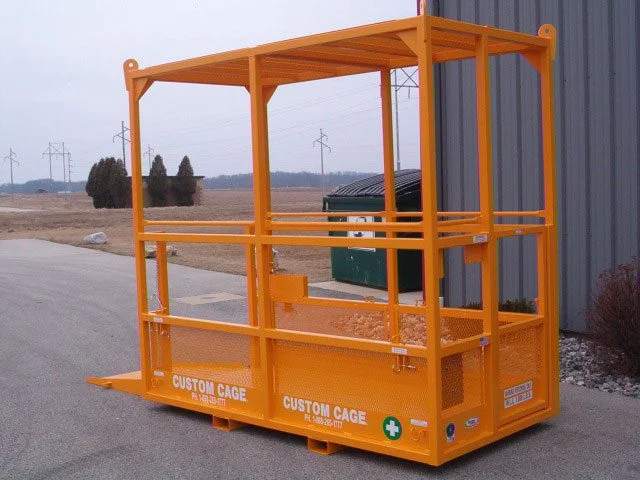

Lakeshore Industrial’s Rescue Cages have been used at construction sites around the world, including the World Trade Center. Our Rescue Cages are 4′ x 8′ they can accommodate 2 people and a stretcher.

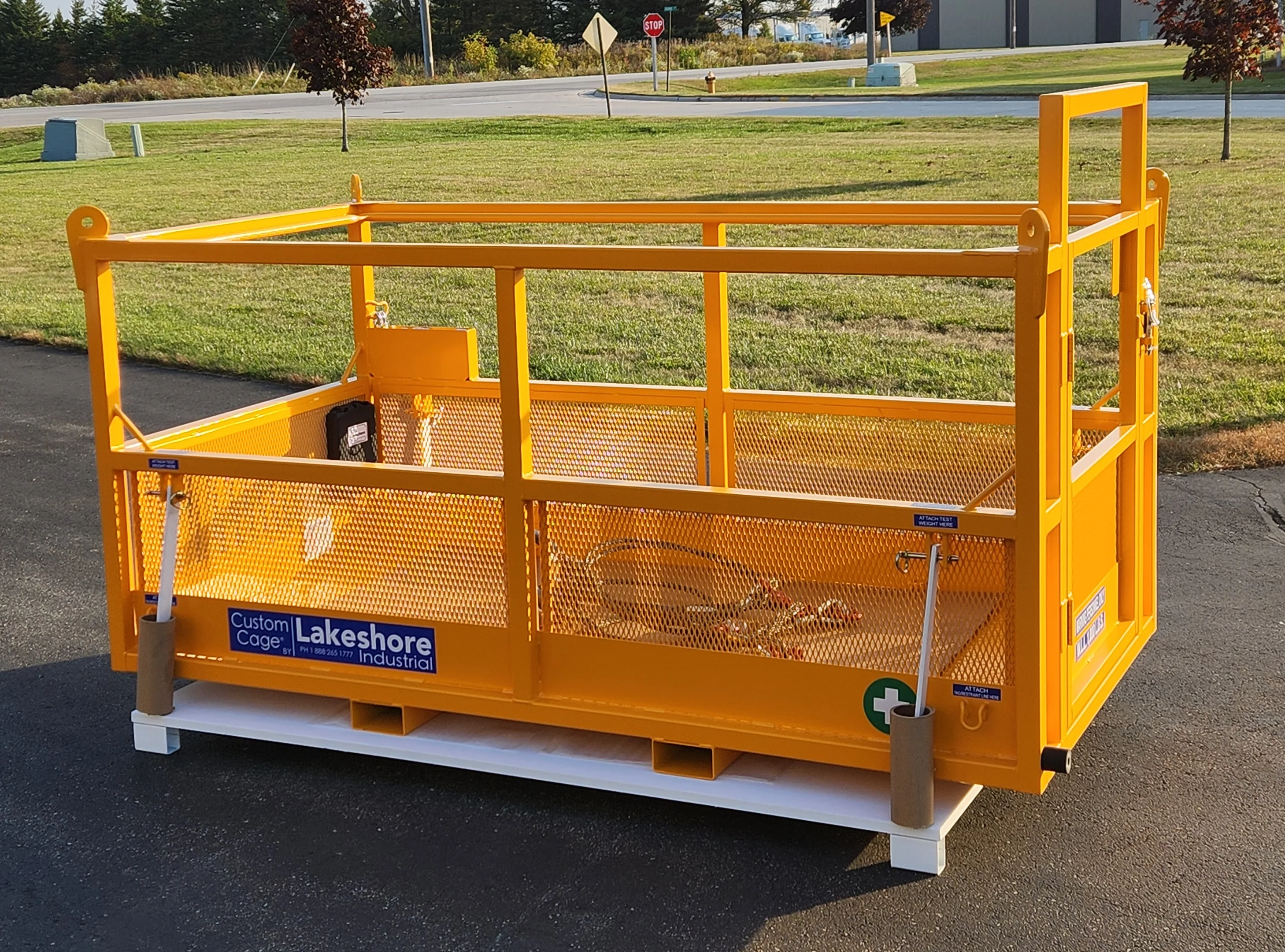

Med-Evac Rescue Platform / Manbasket ME-488 48" x 96" x 44" W.L.L. 1,000 lbs., shown with optional quick pin test weight, forklift attachments & rubber corner bumpers. Used to safely rescue injured workers on jobsite.

Med-Evac Rescue Platform / Manbasket ME-488 48″ x 96″ x 44″ W.L.L. 1,000 lbs., shown with optional quick pin test weight, forklift attachments & rubber corner bumpers. Used to safely rescue injured workers on jobsite.

Our Standard Features For the Rescue Platform Include:

  • Meets or exceeds A.S.M.E. B30.23-latest specifications.
  • Designed to meet or exceed OSHA 29 CFR Subpart CC Part 1926.1431 final rule.
  • AWS D1.1 Certified Welding procedures, all welds are spatter free and smooth.
  • Three year warranty.
  • Dimensions: 48”x96”x44”
  • Working load limit; 1,000 lbs.
  • Each CUSTOM CAGE is load tested.
  • Inspection and certification of OSHA compliance included.
  • 2” square tubing design.
  • Sides enclosed with expanded metal to the intermediate-rail.
  • Grab rail on entire inside perimeter.
  • Floor – non slip diamond plate.
  • 30″ Access door – Outward swinging drop pin latch.
  • 6” Steel continuous toe plate.
  • Guardrail system complies with OSHA 29 CFR Part 1926.502 Sub part M.
  • Anchors for personnel body harness complies with OSHA 29 CFR 1926.502 Sub part M.
  • Exterior pad eyes for anchoring and tag line use.
  • Bridle attachment points.
  • Finish – Electrostatic powder coat : Safety Yellow.
  • Safety warning decals and permanent non corrosive ID Plate.
  • Operating manual furnished inside of cage in a water proof compartment.
  • Fully covered by product liability insurance.
