CANTILEVER Man baskets / WORK PLATFORMS
Crane cantilever baskets:
Some environments require more specialized solutions than a standard man basket. Our cantilever man baskets allow your team to easily access areas unreachable from standard man baskets. Oftentimes, these cages are used to build or maintain bridges or other overhangs. Lakeshore Industrial can build the safe and balanced platform your workers need to get the job done.
Cantilever platforms
These crane-based work platforms are designed to extend the reach of your team, giving them access to areas that are otherwise impossible to reach. By utilizing large counterweights and specialized rigging we are able to provide a platform that stays within 10 degrees of level at all times, as required by OSHA.
There’s no substitute for our Custom Cages and work platforms. Contact us today to talk about your needs!
specifications
Cantilever Man Baskets
| Model | Dimensions | Working Load Limit | Personnel |
|---|---|---|---|
| CL-363 | 36″ 72″ x 87” with 3′ work area @ 42″ high | 750 lbs. – 500 lbs. W.L.L. on deck | 2 Person |
| CL-409 | 48″ x 108″ x 87” with 5′ work area @ 42″ high | 900 lbs. overall – 500 lbs. W.L.L. on deck | 3 Person |
| CL-412 | 48″ x 144″ x 87” with 7′ work area @ 42″ high | 900 lbs. overall – 500 lbs. W.L.L. on deck | 3 Person |
| CL-1105 **Bestseller | 48″ x 17′ x 87″ with 11′ work area @ 42″ high | 900 lbs. overall – 500 lbs. W.L.L. on deck | 3 Person |
| CL-1504 | 48” x 21’ long x 87″ with 15’ work area @ 42” high | 900 lbs. overall – 500 lbs. W.L.L. on deck | 3 Person |
| CL-617 | 48” x 23’ x 87” height with 17’ work area @ 42” high | 900 lbs. overall – 500 lbs. W.L.L. on deck | 3 Person |
Gallery below
Don’t see what you’re looking for?
Cantilever Basket GALLERY
CL-412 Cantilever Basket
CL-409 Cantilever Basket

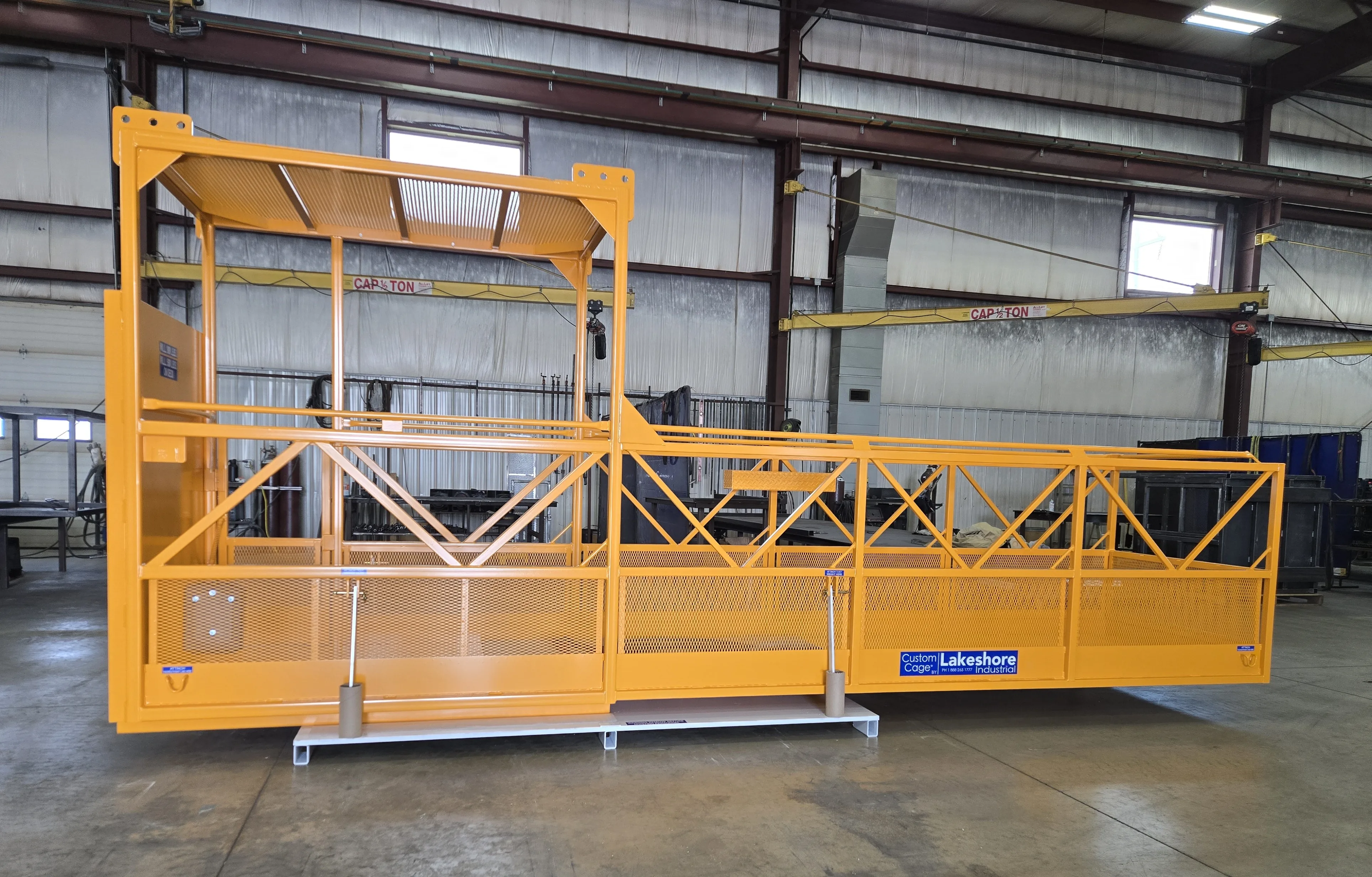

CL-1105 Cantilever Basket
CL-617 Cantilever Basket
CL-363 Cantilever Basket
CL-1504 Cantilever Basket
