UNDERGROUND COnstruction baskets

Tunneling Baskets
Underground construction man baskets allow the safe transfer of multiple personnel together down a mining shaft. Underground mining baskets offer a specific set of guidelines to ensure safe operation. Baskets used in mining work must be fully enclosed with no more than 1/2″ gaps at any part of the basket. They must also come with overhead protection and a means of escape in case of emergency. Read OSHA regulation 1926.800(t)
Lakeshore Industrial is the industry leader in man baskets for tunnel work, we offer:
- Full compliance with OSHA 1926.800 regulations
- The ability to customize
- Removable screen panels for use as a work basket
- Built in ladder for easy escape
Mining is dangerous work, reach out to the leaders in keeping you safe today.

MINING CAGE specifications

| Model | Dimensions | Working Load Limit | Personnel |
|---|---|---|---|
| M-44FE | 48″ x 48″ x 87″ | 1,000 lbs. W.L.L. | 3 Person |
| M-455FE | 48″ x 60″ x 87″ | 1,200 lbs. W.L.L. | 4 Person |
| M-488FE | 48” x 96” x 87” | 1,700 lbs. W.L.L. | 6 Person |
| M-588FE *Bestseller | 60″ x 96″ x 87″ | 2,100 lbs. W.L.L. | 8 Person |
| M-332FE | 36″ x 36″ x 87″ | 600 lbs. W.L.L. | 2 Person |

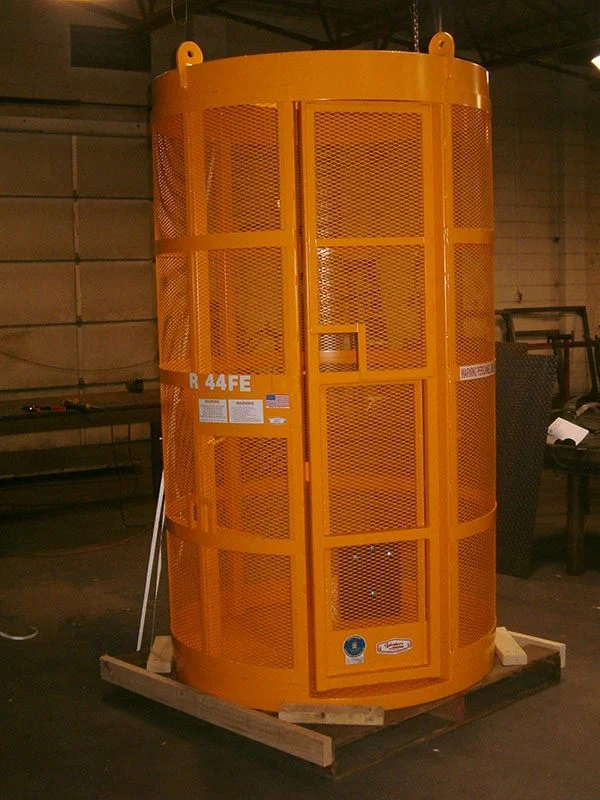

| R-44FE (Round) | 48″ Diameter 84″H | 900 lbs. W.L.L. | 3 Person |
| MRC-488FE (Rescue) | 48″ x 96″ x 87″ | 1,000 lbs. W.L.L. | 3 Person |
Gallery Below
Don’t see what you’re looking for?
MINING BASKET GALLERY

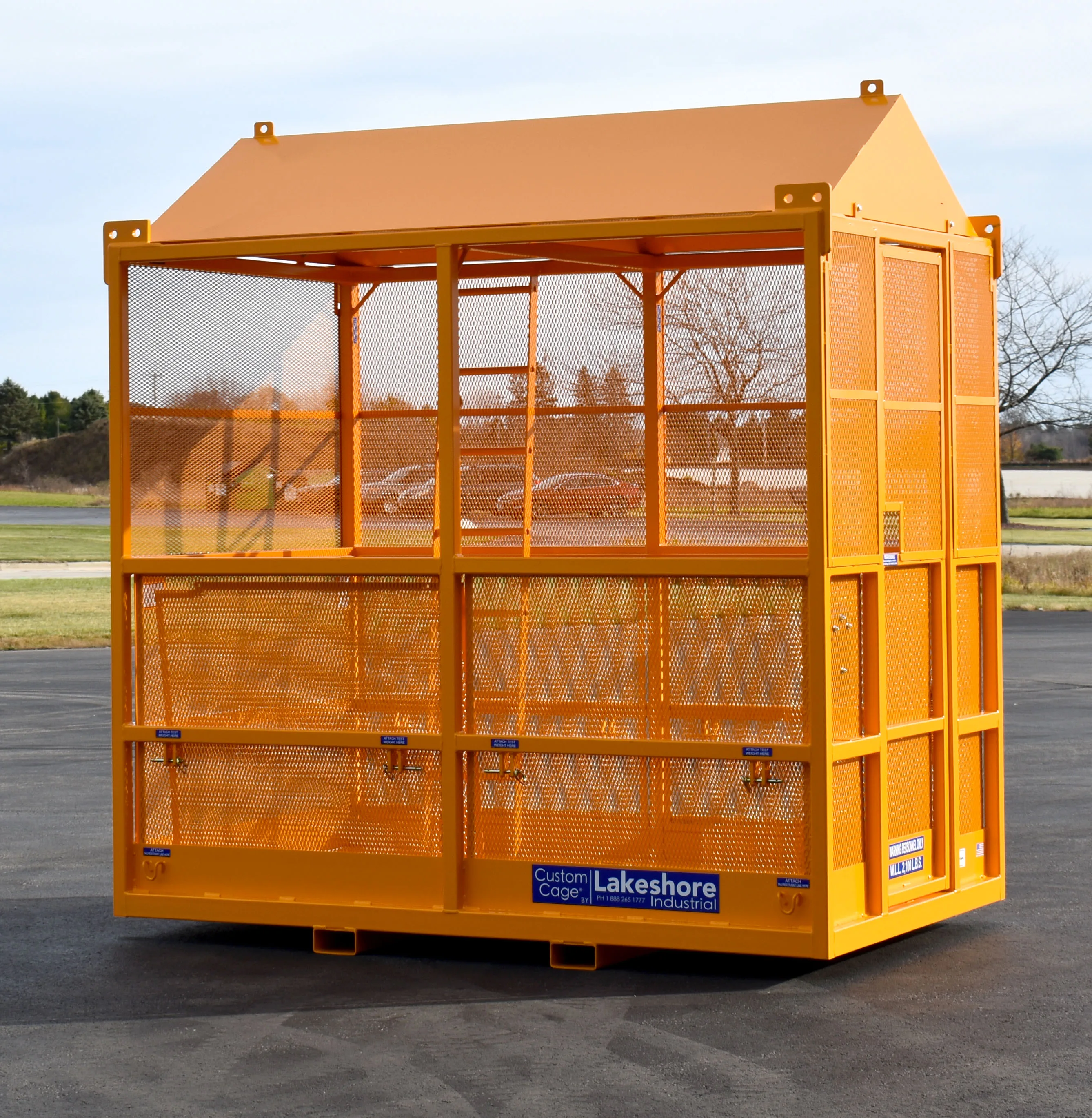

Model M-588FE

Model M-455FE

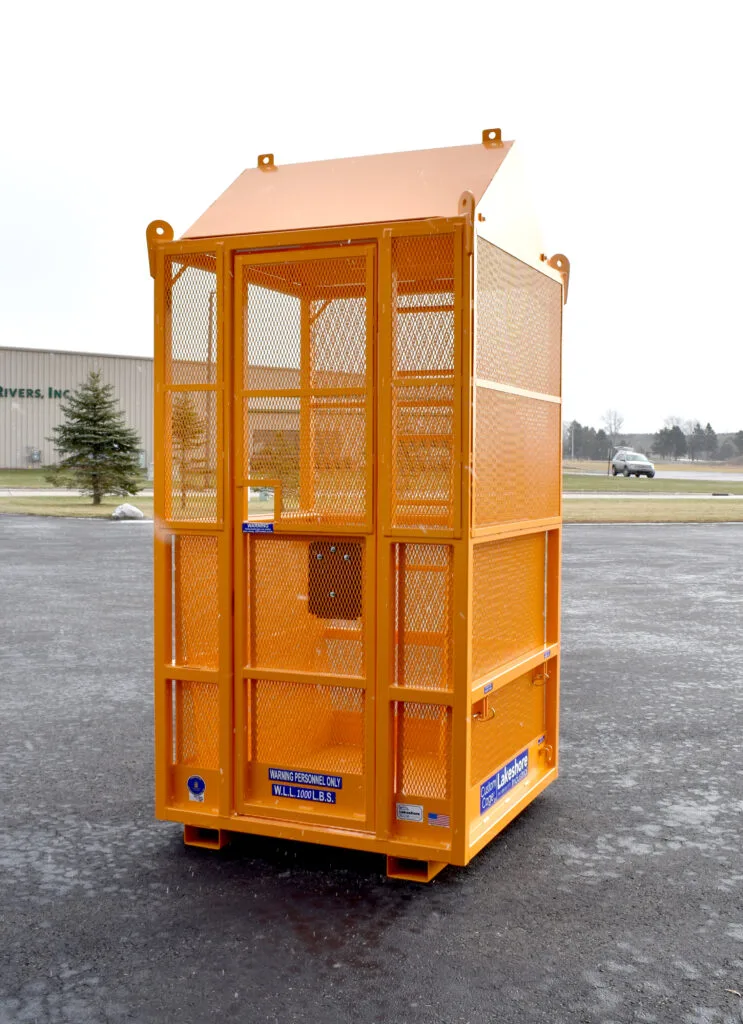

Model M-44FE

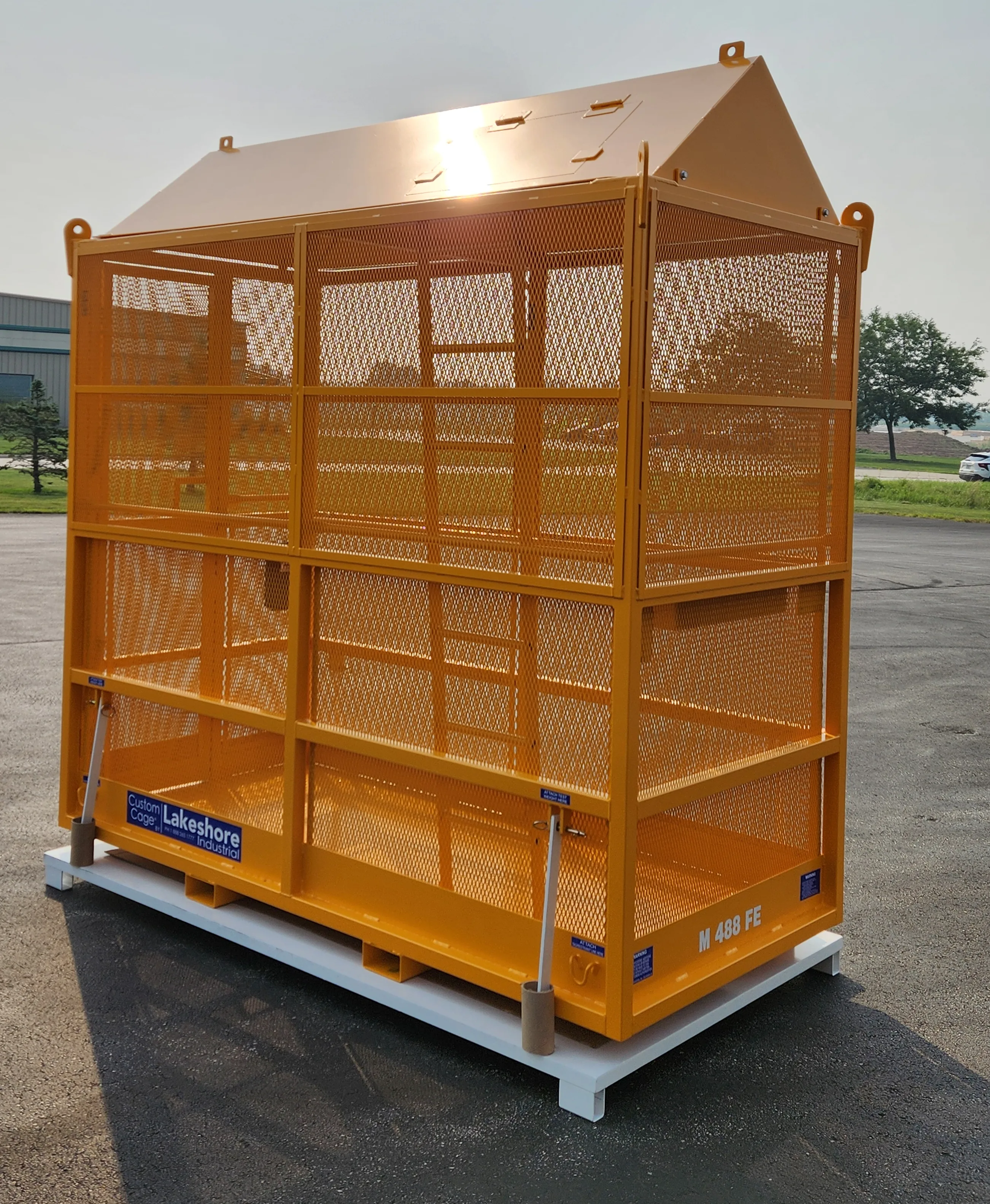

Model M-488FE

Model M-332FE

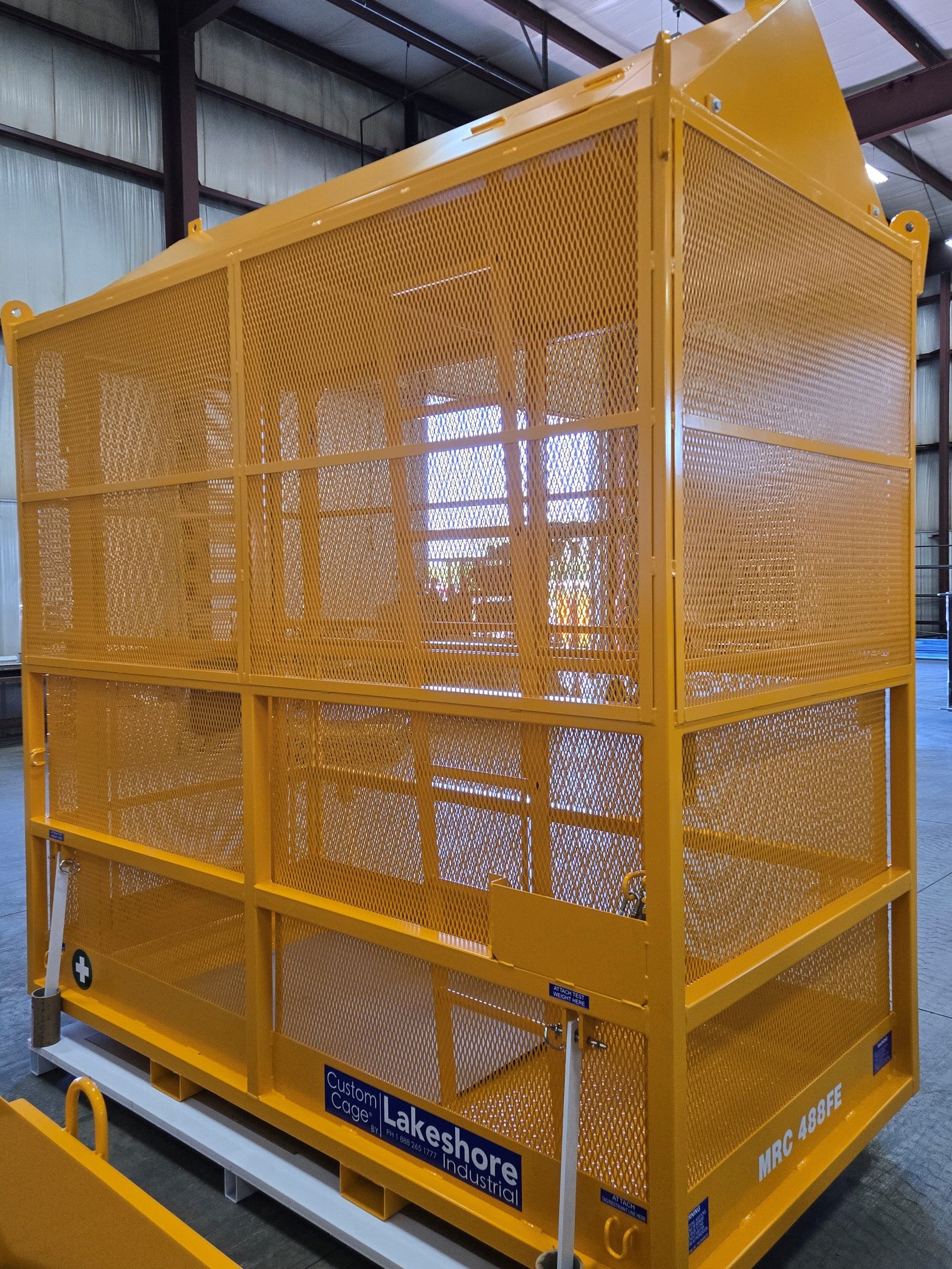

Model MRC-488FE

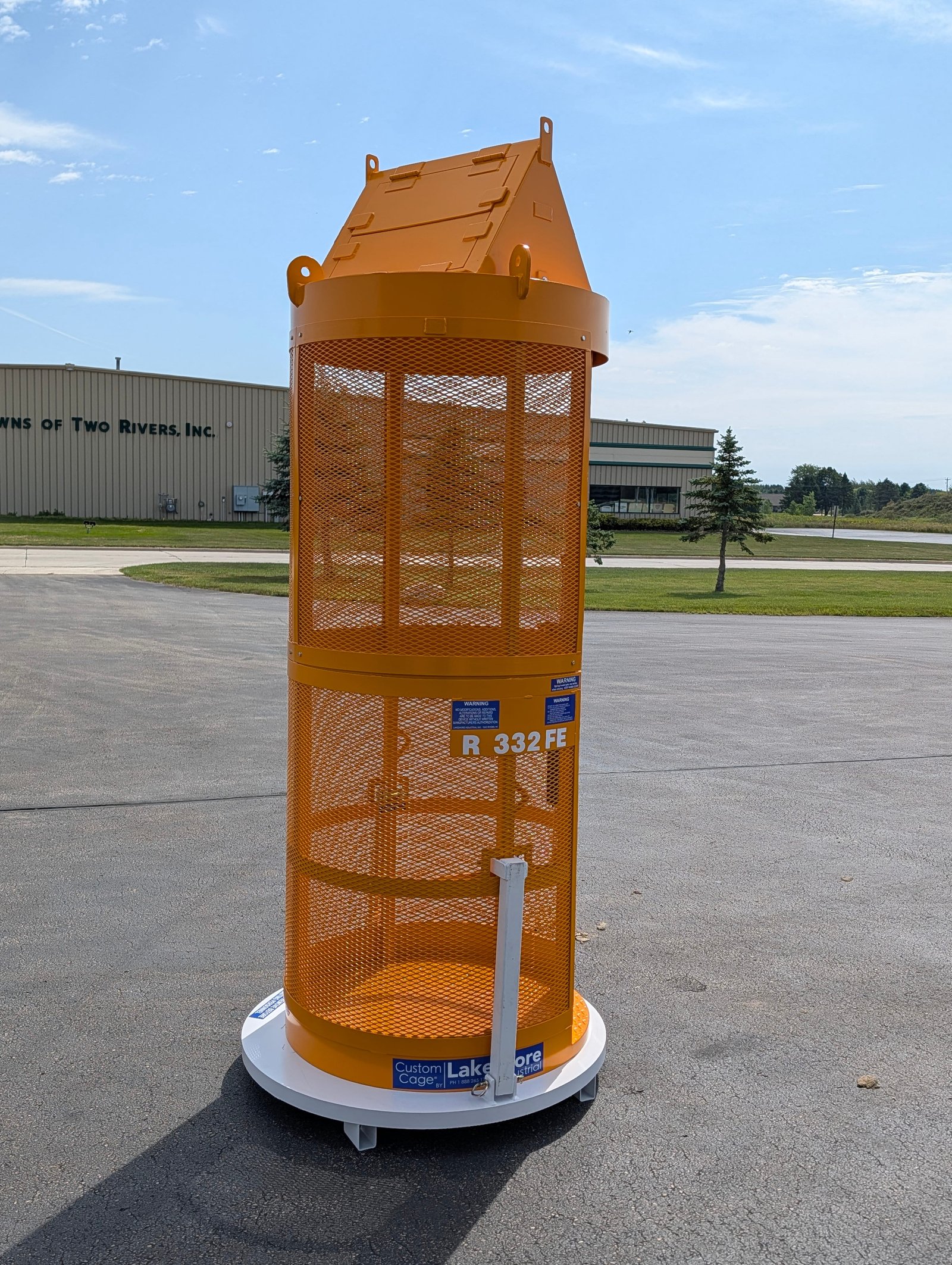

Model R-332FE
Underground Construction FAQ’S
Underground construction has its own set of guidelines for man baskets which follows OSHA 1926.800(t). Some of the differences in these regulations include fully enclosed sides and a peaked or slanted roof with escape hatch.
When it comes to hoisting personnel an extra safety line such as a 5 part bridle assembly is a requirement of OSHA 1926.800
