MAN BASKETS
OSHA & ASME B30.23 Certified Crane Man Basket
Lakeshore Industrial manufactures and sells premium man baskets built to withstand the rigors of any industrial, construction, mining or heavy civil job. Lakeshore Industrial man baskets are load tested at 200% of their rated capacity prior to leaving our facility and built from high strength 2″ square tube steel. Our baskets also include harness anchor points and grab rails to comply with ASME B30.23 regulations.
Why safety officials choose Lakeshore Industrial Man Baskets
- Industry leading 3 year warranty: Lakeshore was the first to offer a 3 year warranty on our crane man baskets because we are confident in our high quality standards.
- Robust design: When most manufacturers choose to use a lesser tube or piping design, Lakeshore Industrial uses a heavy duty 2″ square tube design and even a 2″ x 3″ on some of our larger baskets.
- Built in tool box: We now build in tool boxes to most of our personnel platforms so you no longer have to worry about lose tools when working inside your basket.
- 25+ years of craftsmanship: We have remained a family owned and operated business for over 25 years, passing down our dedication to uphold the highest quality standards.
Get in touch with us for a quote on a man basket!
MAN BASKET specifications
Every Man basket has a tall and short (S) version
| Model | Dimensions | Working Load Limit | Personnel |
|---|---|---|---|
| M-301 | 30” x 30” x 87” | 300 lbs. W.L.L. | 1 Person |
| M-332 | 36” x 36” x 87” | 600 lbs. W.L.L. | 2 Person |
| M-342 | 36” x 48” x 87″ | 600 lbs. W.L.L. | 2 Person |
| M-44 **Bestseller | 48” x 48” x 87” | 1,000 lbs. W.L.L. | 3 Person |
| M-353 | 36” x 60” x 87” | 1,000 lbs. W.L.L. | 3 Person |
| M-362 | 36” x 72” x 87” | 1,200 lbs. W.L.L. | 4 Person |
| M-455 | 48” x 60” x 87″ | 1,200 lbs. W.L.L. | 4 Person |
| M-466 | 48” x 72” x 87” | 1,500 lbs. W.L.L. | 5 Person |
| M-488 | 48” x 96” x 87” | 1,700 lbs. W.L.L. | 6 Person |
| M-588 | 60” x 96” x 87” | 2,100 lbs. W.L.L. | 8 Person |
| Model | Dimensions | Working Load Limit | Personnel |
|---|---|---|---|
| M-301S | 30” x 30” x 44” | 300 lbs. W.L.L. | 1 Person |
| M-332S | 36” x 36” x 44” | 600 lbs. W.L.L. | 2 Person |
| M-342S | 36” x 48” x 44″ | 600 lbs.W.L.L. | 2 Person |
| M-44S | 48” x 48” x 44” | 1,000 lbs. W.L.L. | 3 Person |
| M-353S | 36” x 60” x 44” | 1,000 lbs. W.L.L. | 3 Person |
| M-362S | 36” x 72” x 44” | 1,200 lbs. W.L.L. | 4 Person |
| M-455S | 48” x 60” x 44″ | 1,200 lbs. W.L.L. | 4 Person |
| M-466S | 48” x 72” x 44” | 1,500 lbs. W.L.L. | 5 Person |
| M-488S | 48” x 96” x 44” | 1,700 lbs. W.L.L. | 6 Person |
| M-588S | 60” x 96” x 44” | 2,100 lbs W.L.L. | 8 Person |
| Model | Dimensions | Working Load Limit | Personnel |
|---|---|---|---|
| M-44 FE | 48” x 48” x 87” | 1,000 lbs. W.L.L. | 3 Person |
| M-488 FE | 48” x 96” x 86” | 1,700 lbs. W.L.L. | 6 Person |
| M-588 FE **Bestseller | 60” x 96” x 86” | 2,100 lbs. W.L.L. | 8 Person |
| M-455 FE | 48” x 60” x 86” | 1,200 lbs. W.L.L. | 4 Person |
| M-332 FE | 36” x 36” x 86” | 600 lbs. W.L.L. | 2 Person |
| R-44 FE Round | 48” x 84” | 900 lbs. W.L.L. | 3 Person |
GALLERY BELOW
Stainless Steel Man Baskets:
*All cages are available in stainless steel. Please inquire for price.
GALLERY
M-44 Man Basket
M-342 Man Basket
M-332 Man Basket
M-332S Man Basket
M-362 Man Basket

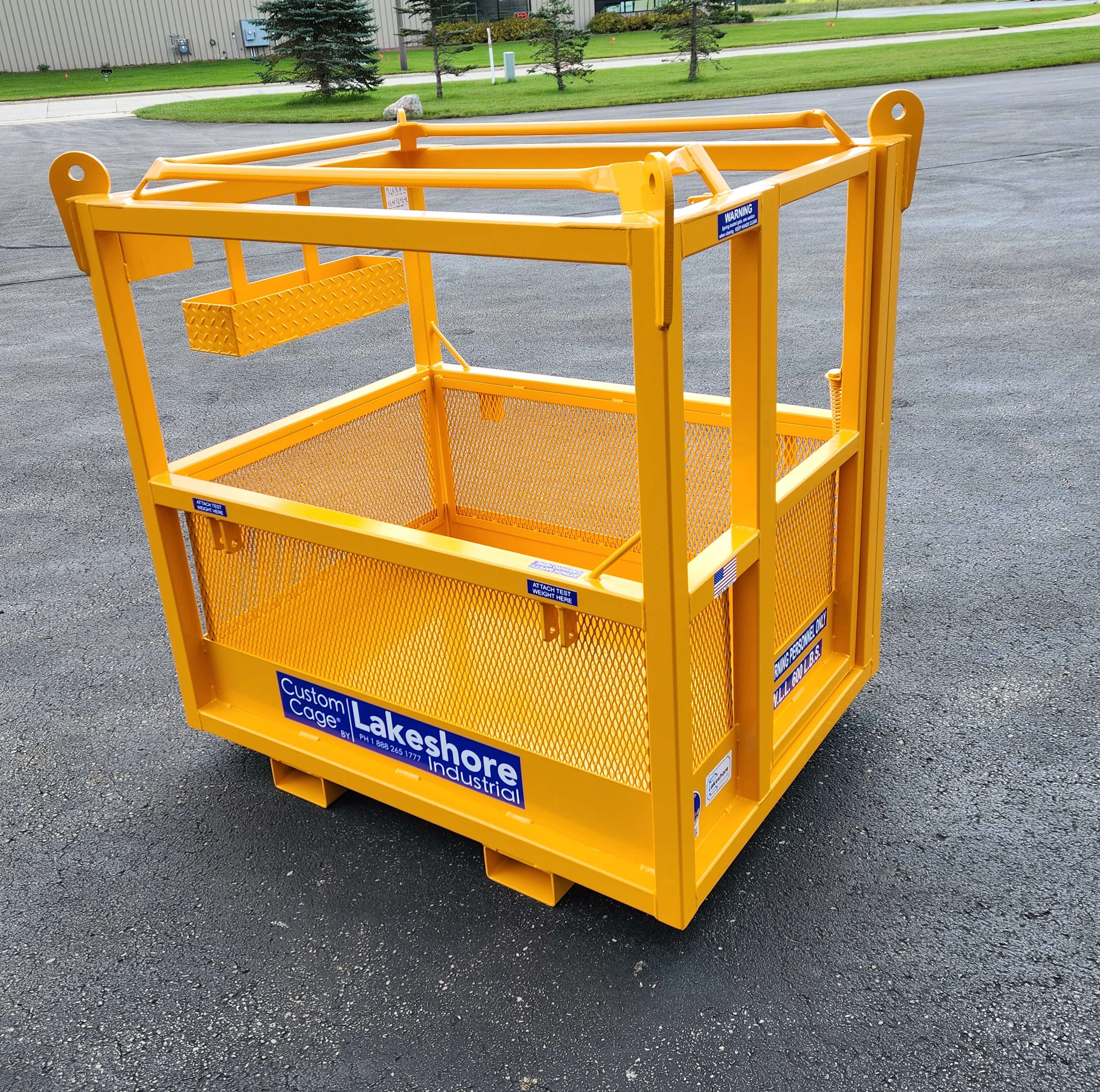

M-342S Man Basket

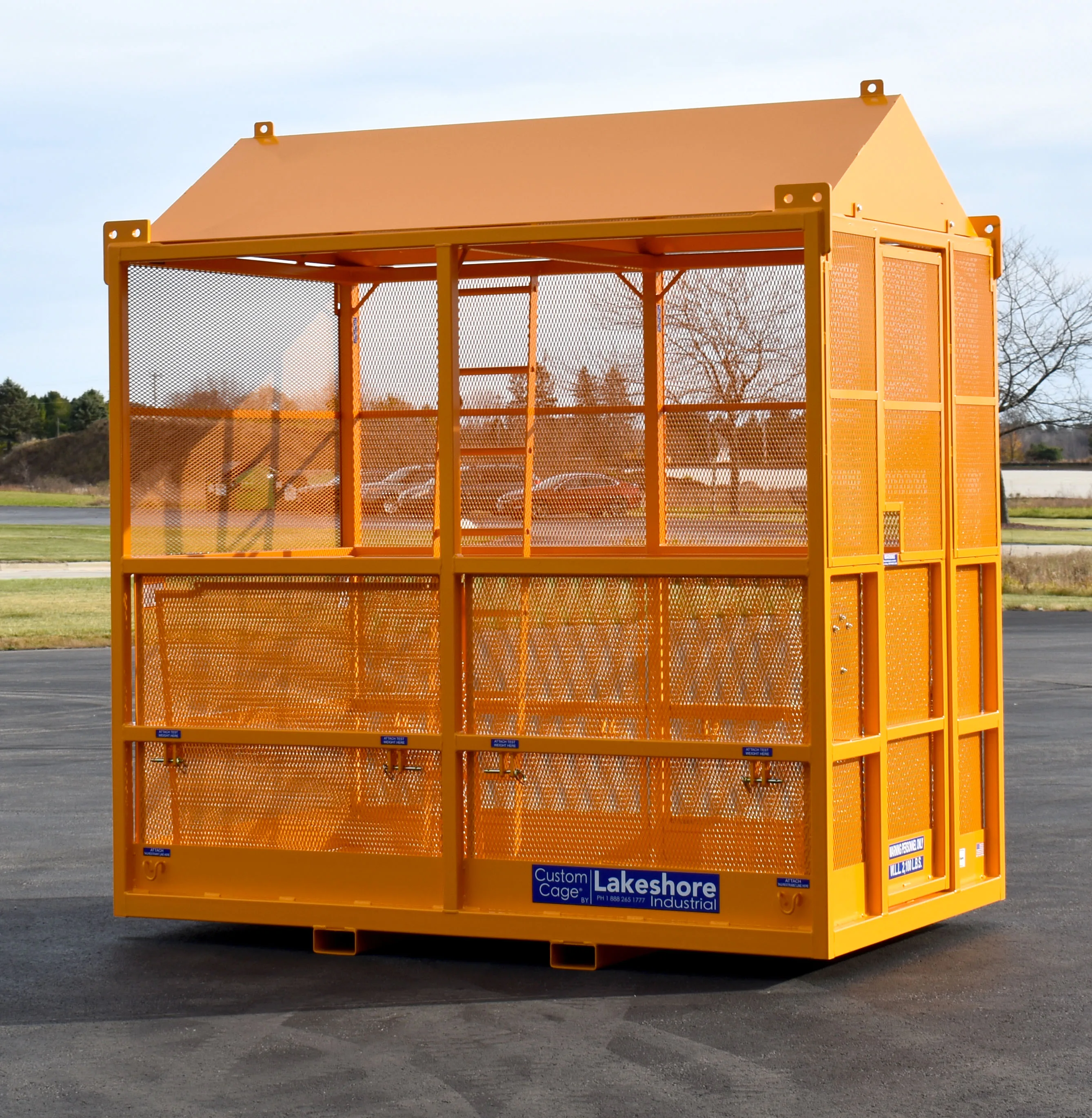

M-588FE Man Basket
M-588FE Man Basket
M-44FE Man Basket
M-353 Man Basket
M-353S Man Basket
M-301 Man Basket

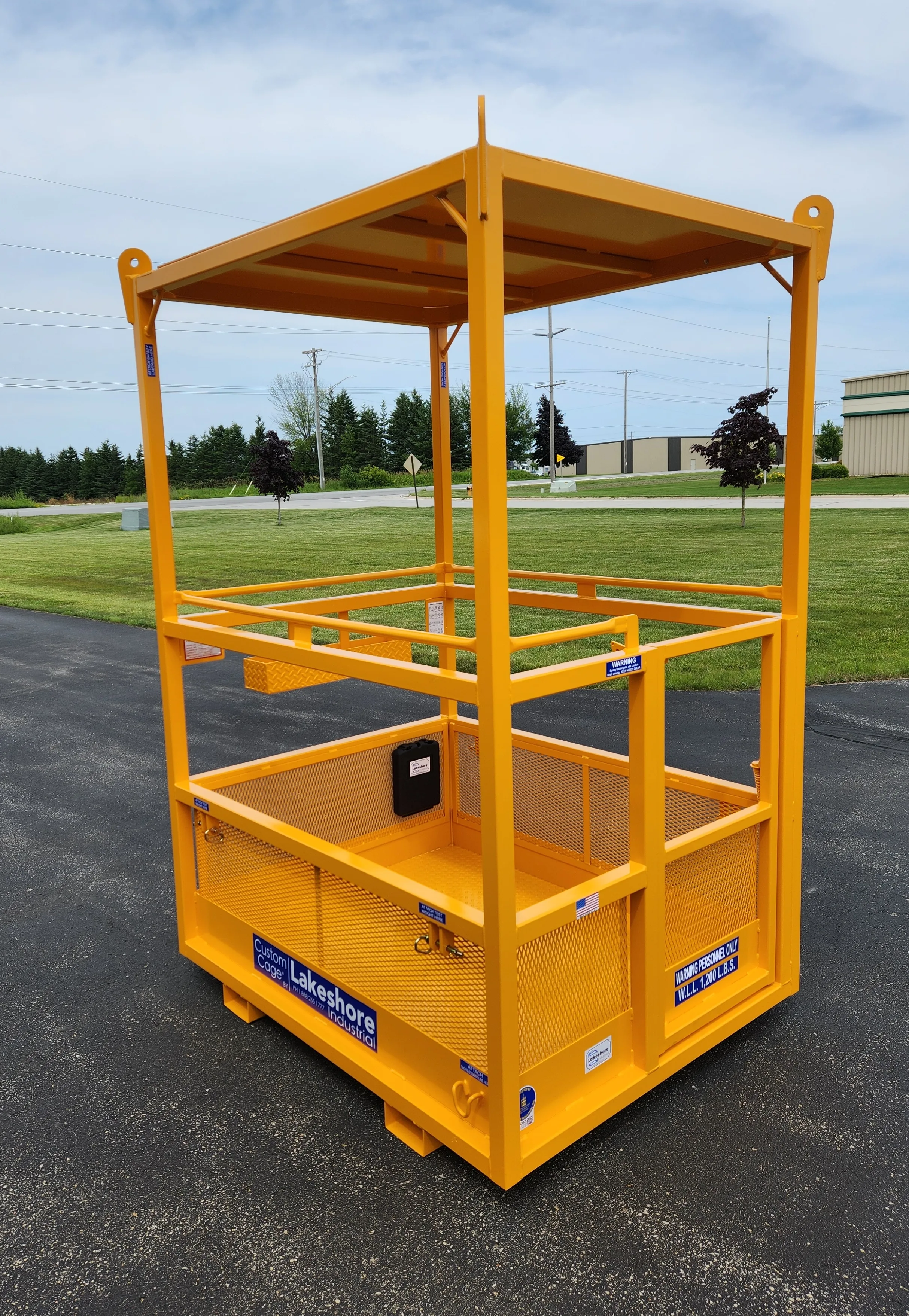

M-455 Man Basket

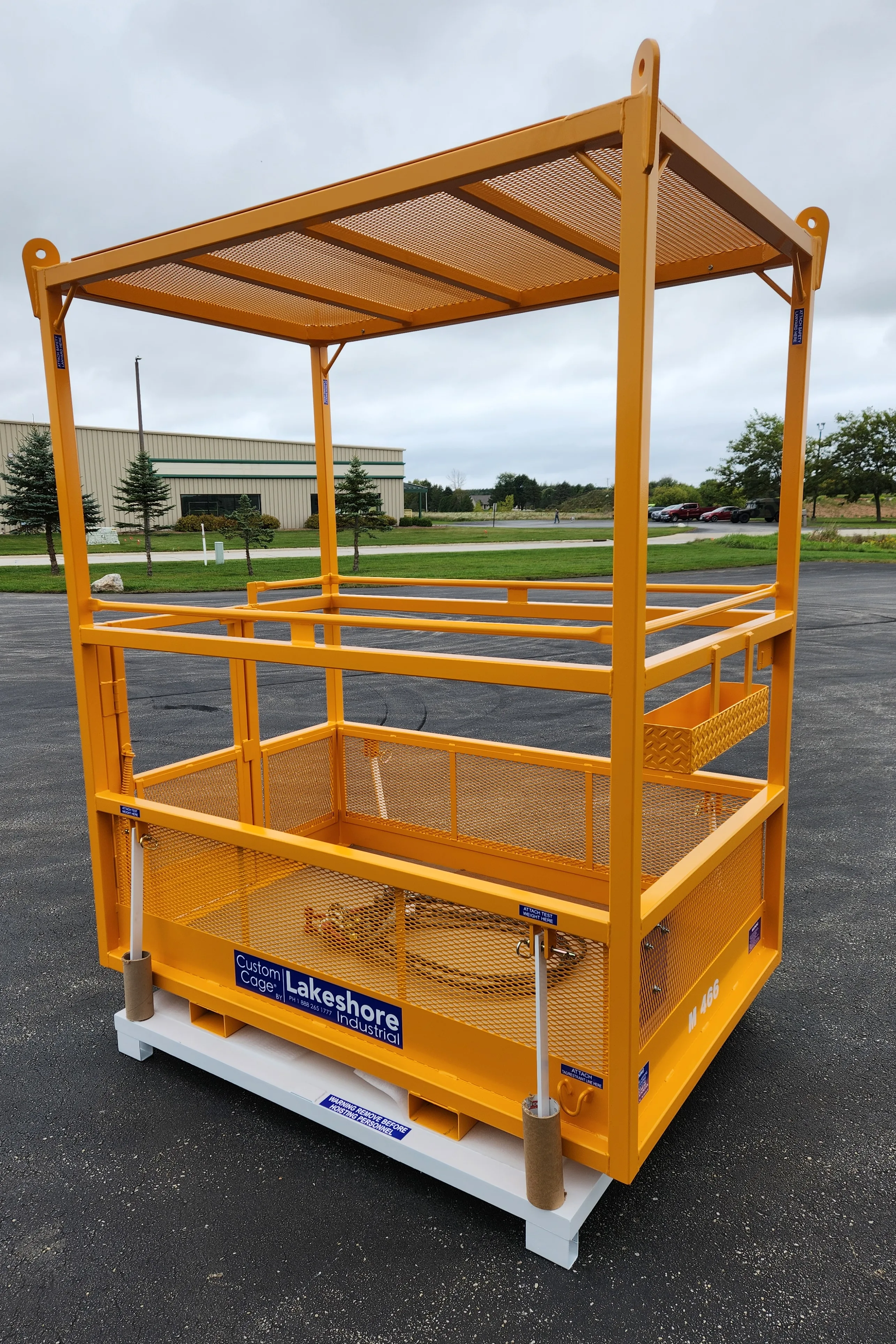

M-466 Man Basket
M-362S Man Basket
M-455S Man Basket
M-455 FE Man Basket
M-44S Man Basket
M-466S Man Basket
M-488 Man Basket
M-301S Man Basket
M-488S Man Basket
M-588 Man Basket
M-588S Man Basket
