Cantilever Cages Work Platforms & Manbaskets
Model | Dimensions | Working Load Limit | Test Weight |
CL-363 Cantilever Manbasket | 36″ W. x 72″ L. x 86” H. with 3′ work area @ 44″ high | 750 lbs. – 500 lbs. w.l.l. on deck | 938 lbs. |
CL-409 Cantilever Manbasket | 48″ W. x 108″ L. x 86” H. with 5′ work area @ 44″ high | 900 lbs. overall – 500 lbs. w.l.l. on deck | 1,125 lbs. |
CL-412 Cantilever Manbasket | 48″ W. x 144″ L. x 86” H. with 7′ work area @ 44″ high | 900 lbs. overall – 500 lbs. w.l.l. on deck | 1,125 lbs. |
CL-503 Cantilever Manbasket | 48″ W. x 96″ L. x 86” H. with 3′ work area @ 44″ high | 750 lbs. – 500 lbs. w.l.l. on deck | 938 lbs. |
CL-1105 Cantilever Manbasket | 48″ wide x 17′ long x 90″ height with 11′ work area @ 42″ high | 900 lbs. overall – 500 lbs. w.l.l. on deck | 1,125 lbs. |
Photo Gallery
Cantilever Cages Work Platforms & Manbaskets
-

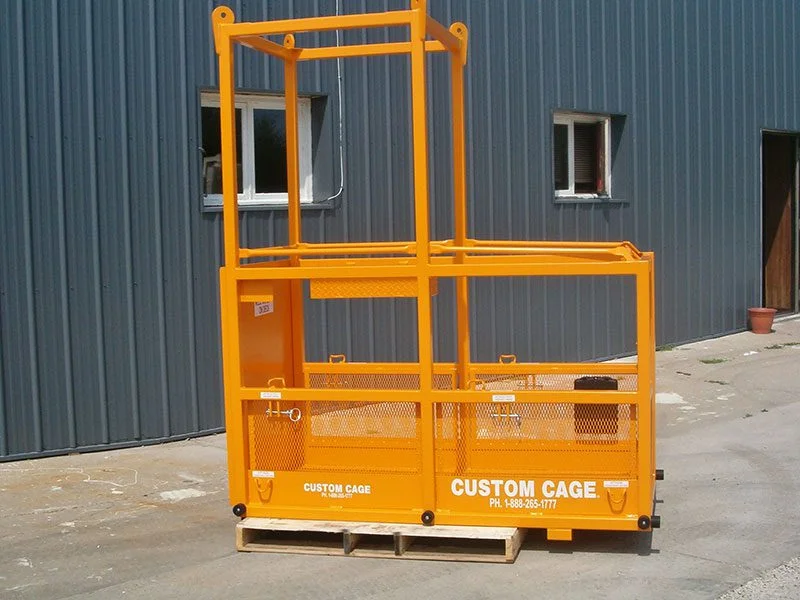

CL-363 Cantilever Work Platform / Manbasket (36"x72"x86") With a 3' Work Deck @ 44" high W.L.L. 750 lbs. - 500 lbs. on Deck - Shown with Optional Rubber Corner Bumpers, and Tool Storage Shelf
-
CL-409 Cantilever Work Platform / Manbasket (48"x108"x86") with a 5' work deck @ 44" high. - W.L.L. 900 lbs. - 500 lbs. on deck
-
CL-412 Cantilever Work Platform / Manbasket (48"x144"x86") with a 7' Work Deck @ 44" high 900 lbs. W.L.L. / 500 lbs. on Deck. Shown with optional Test Weight
-
Model CL-503 Cantilever Work Platform / Man Basket 48" x 96" x 86" with 3' work deck
-
CL-1105 Cantilever Work Platform / Manbasket (48″ x 17′ x 84″) with a 11′ work deck @ 42″ – 900 lbs. w.l.l. 500 lbs. on deck
-
CL-1105 CANTILEVER WORK PLATFORM - LEVEL WITH 1 MAN
-
CL-1105 CANTILEVER WORK PLATFORM LEVEL WITH 2 MEN
-
CL-1105 CUSTOM CAGE CANTILEVER MANBASKET LEVEL WITH 3 MEN
-

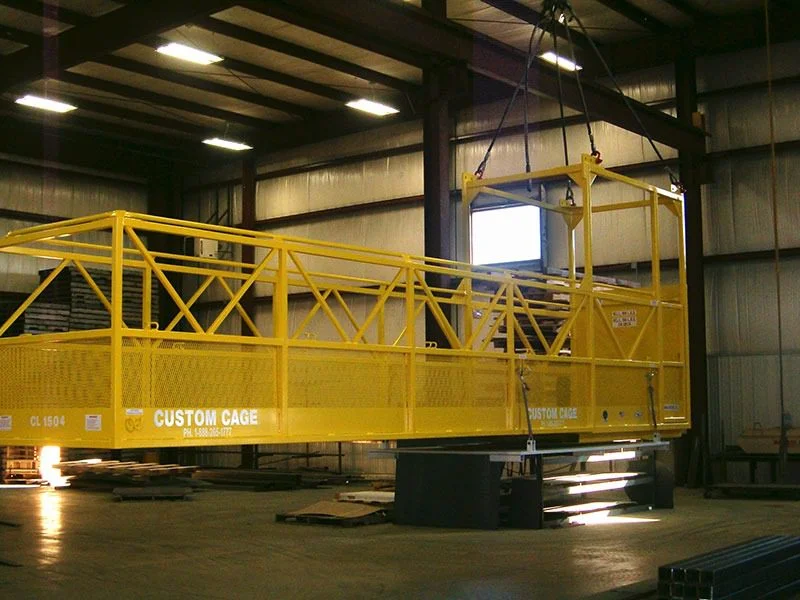

CL-1504 Custom Cage Cantilever Work Platform 48" x 21' x 90" H. with a 15' work deck @ 42" H. Comes with Test Weight & Rigging
-

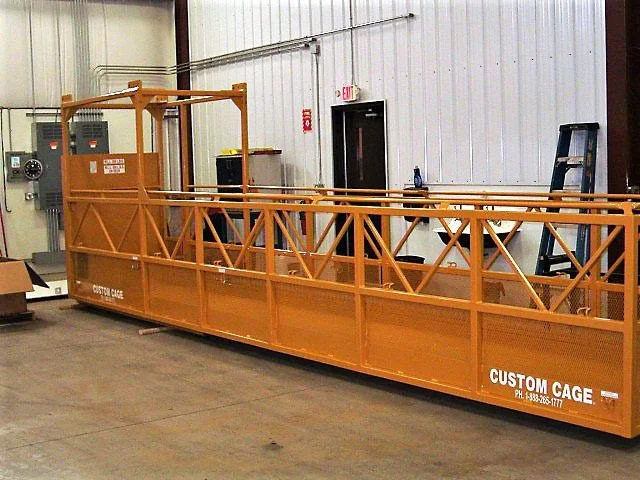

CL-617 Custom Cage Cantilever Work Platform by Lakeshore Industrial 48" x 23' x 90" H. with a 17' work deck 42" H. Comes with Test Weight & Rigging
